1.2738 Large Cross-Sectional Pre-Hardende Plastic Mold Steel Tool Steel AISI P20

DIN 1.2738 tool steel is one kind of cold work steel, equivalent to AISI P20+Ni tool steel. While Nickel, chromium and molybdenium are the alloying elements for hardness and toughness.1.2738 tool steel is specially designed for plastic mold industry, especially for big steel mold parts.

Guangda 2738 refined mirror finished plastic die steel replace the large-section pre-hardened 1.2738, 718HH, P20 etc . Guangda has acquired advanced technologies to optimize alloy composite and struction to ensure homogeneous hardness ,polishing performance and machinability .

Chemical composition of Tool and die steel 1.2738

Property for Tool and die steel 1.2738

1. Good welding performance of pre-hardened die blocks
2. Good polishing property (high hardness uniformity,hardness fluctuation ≤2HRC)
3. Excellent machining performance
4. Extra large cross sections : Maximum 1200*1300mm and weighs 40 ton for one piece
5. Hardness :32-36 HRC
6. Wear and corrosive resistance
7. Strength enough to stand for presssure from injection plastic mold

Applications of Tool and die steel 1.2738 applications

1. Mould for plastic injection and compression automotive,bumper and dashboard TV cabinets,drum mold of washing machine .
2. Skin pattern, pear pattern, imitation stone pattern etching mould.
3. Transparent plastics such as stationery boxes and daily necessities containers require high gloss molds.
4. Especially suitable for hard glue (PS) and non-shredding glue (ABS) parts.
5. Large molds with high production requirements such as automobile bumpers, interior parts, refrigerators, air conditioners, etc.
6. large cavity plates with deep cavities for items such as dashboards, moulding frames

Other Tool and die steel we provided

About Guangda for die and tool steel

Guangda are professional die and tool steel manfuacturer and based on professional technologies,well-furnished equipmnets with rich experience. We provide high quality die steel materials: super large section pre-hardening plastic die , high polishing mirror die , high polishing mirror die , corrosion resistant mirror die , car lamp die steel, high heat strength hot die steel , high heat stability hot work die steel etc .

We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

Products are widely used in automobille,machinery and electronics industry , home appliances ,defense and aerospace industry .Especially , the newly developed die-casting mold steel ,core bar for large diameter steel sleeves and big plastic mould block ,have filled in the technical blanks and reached the top quality in the world .At the same time ,we maintain leading role in advanced vacuum heat treatment technology and advanced surface technology with the support of the research Group .

Smelting


Forging


Heat treatment


Machining

​

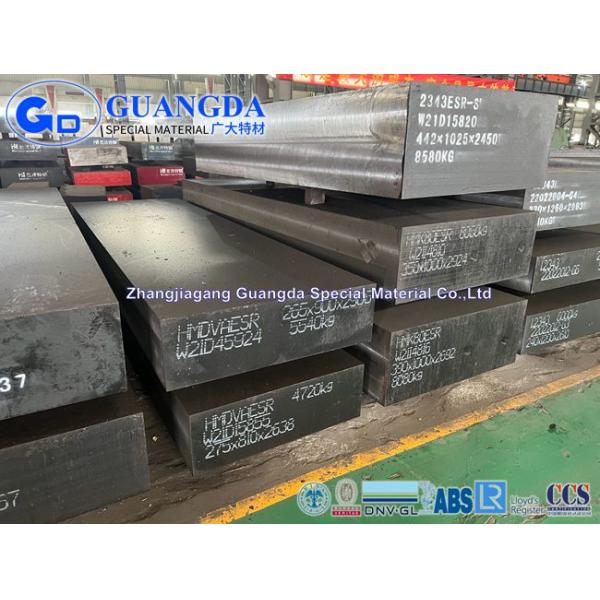

Stock

die block

hot die steel

tool steel bar

Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003.  We located in Jiangsu Province beside Shanghai. Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

 1. Headquarter Zhangjiagang 220.000㎡                                   2. Rugao Base 420.000㎡

 3. Zhangjiagang Precision Manufacturing Base 200,000㎡     4. Deyang Base 350.000㎡

Guangda Main products.

1. Material :
Gunagda has formed more than 10 core technologies in material melting technology and has internationally advanced heat treatment production lines from smelting and forging. Annual capacity for high quality alloy ingot 500,000 tons .Guangda provide high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state.

2.Forgings:
Guangda provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.

3.Castings:
Our business mainly focuses on large casting equipment, and our products mainly include large wind turbine castings, large equipment and equipment castings, large plastic machinery castings, and large shell castings with a total annual capacity of 210,000 tons. We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.

4.Precision machining parts:
Through continuous and high starting point technical transformation. Guangda has introduced world-class high-precision equipment for the gears manufacturing, established a complete quality management system and after-sales service network, and dedicated itself to providing users with high-quality products. Quality products and satisfactory service.​All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.
